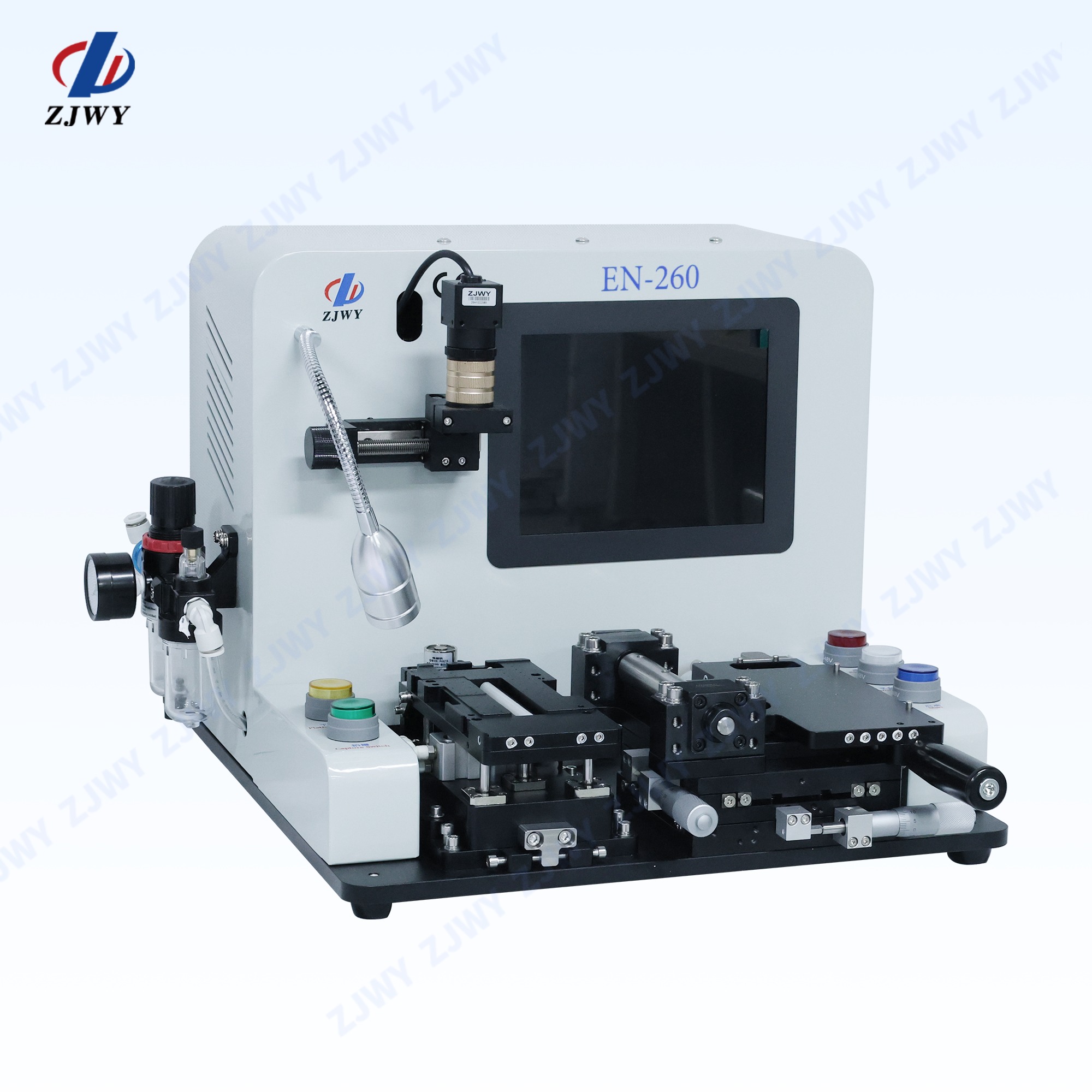

EN-260 Alignment Machine
High-precision visual alignment & vacuum adsorption
¥8,000 RMB
Lamination Equipment
Inquire Now
Contact Sales Team
Click an avatar to chat on WhatsApp

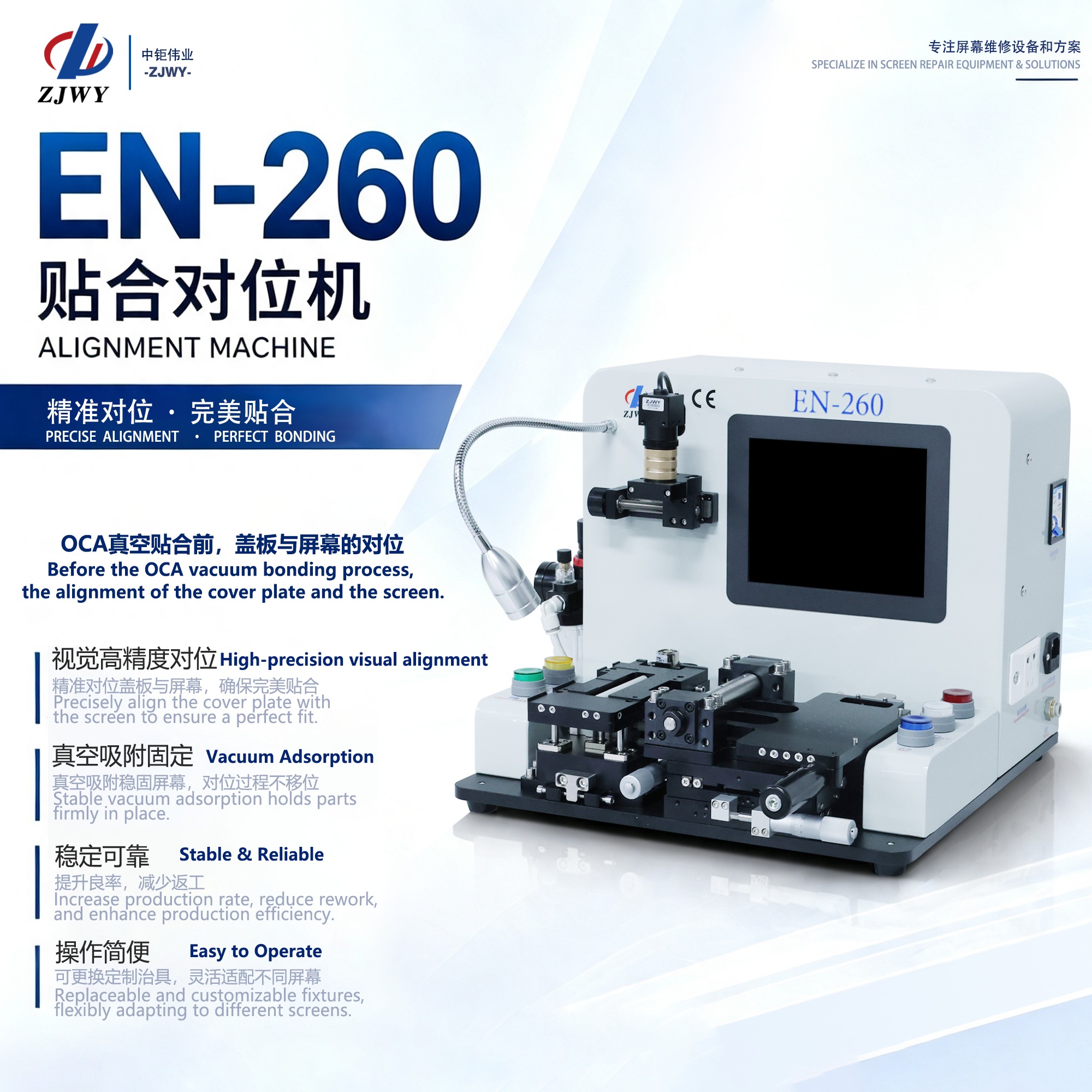

Features
- High-precision visual alignment — precisely aligns the cover plate with the screen before lamination for a perfect fit
- Vacuum adsorption — stable vacuum holds the parts firmly in place
- Stable & reliable — improves production efficiency and reduces rework
- Easy to operate — replaceable and customizable fixtures
Specifications
| 1. Structural Specifications | |
| Body material | Imported aluminium, flatness ±0.02 mm, anodised |

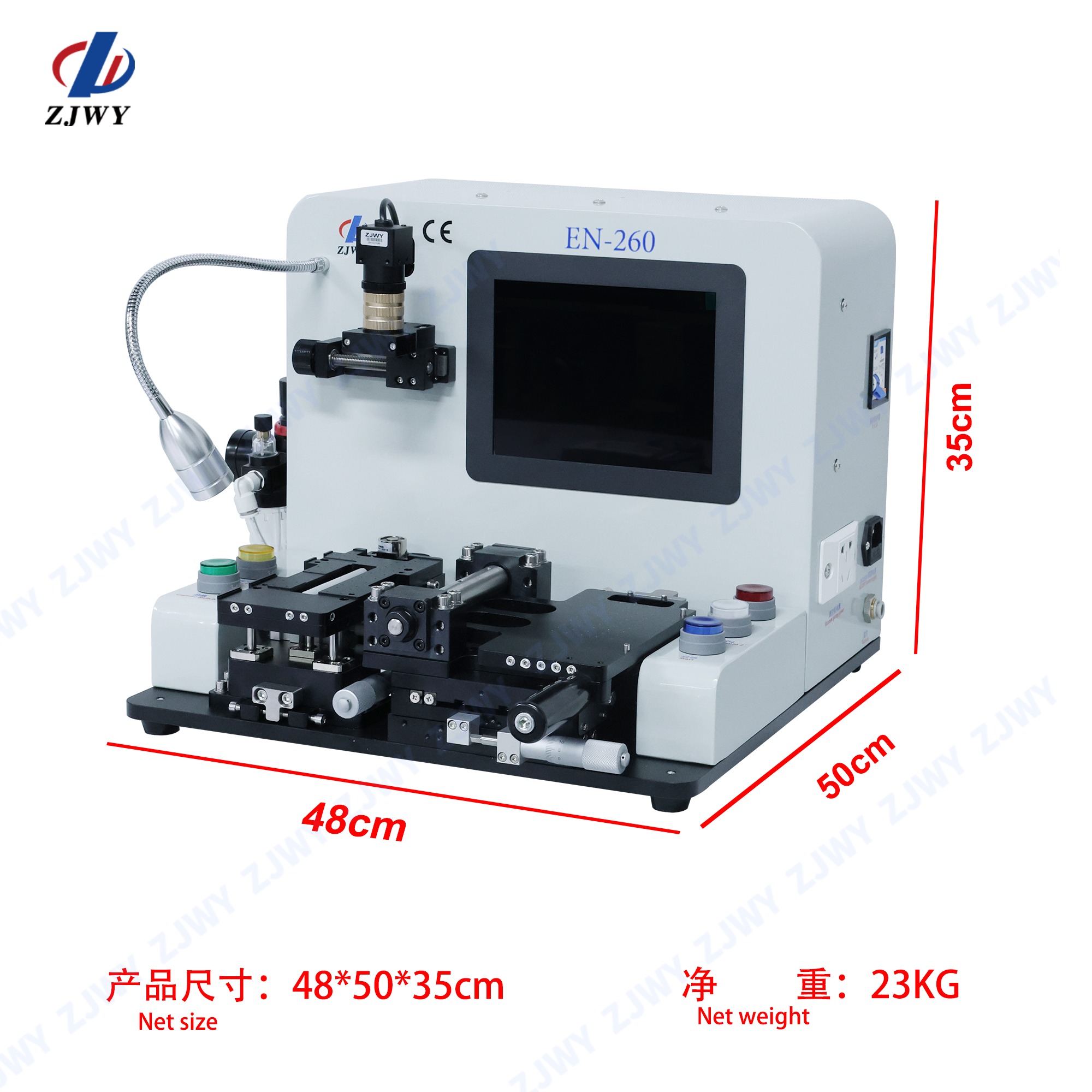

| Machine size | 480 × 500 × 350 mm |
| Air supply | 0.4 – 0.6 MPa |
| Power supply | AC 220V 50/60Hz |
| Power | 300 W |
| Alignment accuracy | ±5 μm |
| Net weight | ≈ 23 kg |
| Working platform | 170 × 80 mm |
| Suitable screen size | 2.4 – 7.9 inch |
| 2. System Configuration | |
| Control system | Built-in PLC |

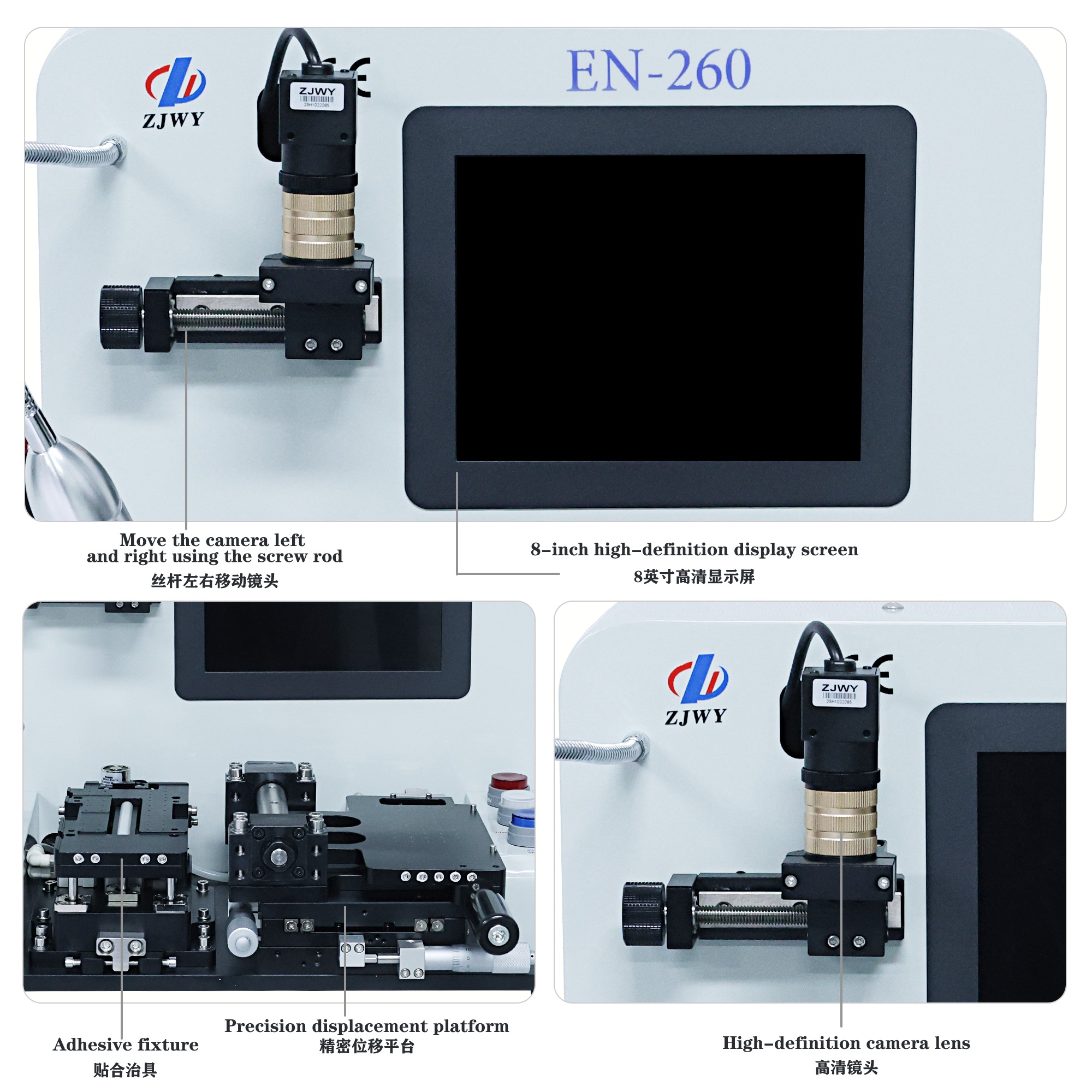

| Alignment system | Vision system (3× zoom lens · HD CCD · 8-inch HD display) |
| Screen fixing | Vacuum adsorption (external vacuum pump) |
| Cover plate fixing | Vacuum adsorption |
| Screen platform adjustment | Angle adjustment |
| Cover plate platform adjustment | XY adjustment (micrometer) |
| Cover plate platform flip | Manual |
| Lifting cylinder | AIRTAC cylinder |
| Linear motion control | Precision linear bearing |
| Pneumatic components | CKT solenoid valve |
| Cover plate platform locking | Electric magnetic chuck |
| Leakage protector | 16A |
| 15A fuse | Standard |
Specification download: Chinese PDF | English PDF
Demo Video
Application Scenarios

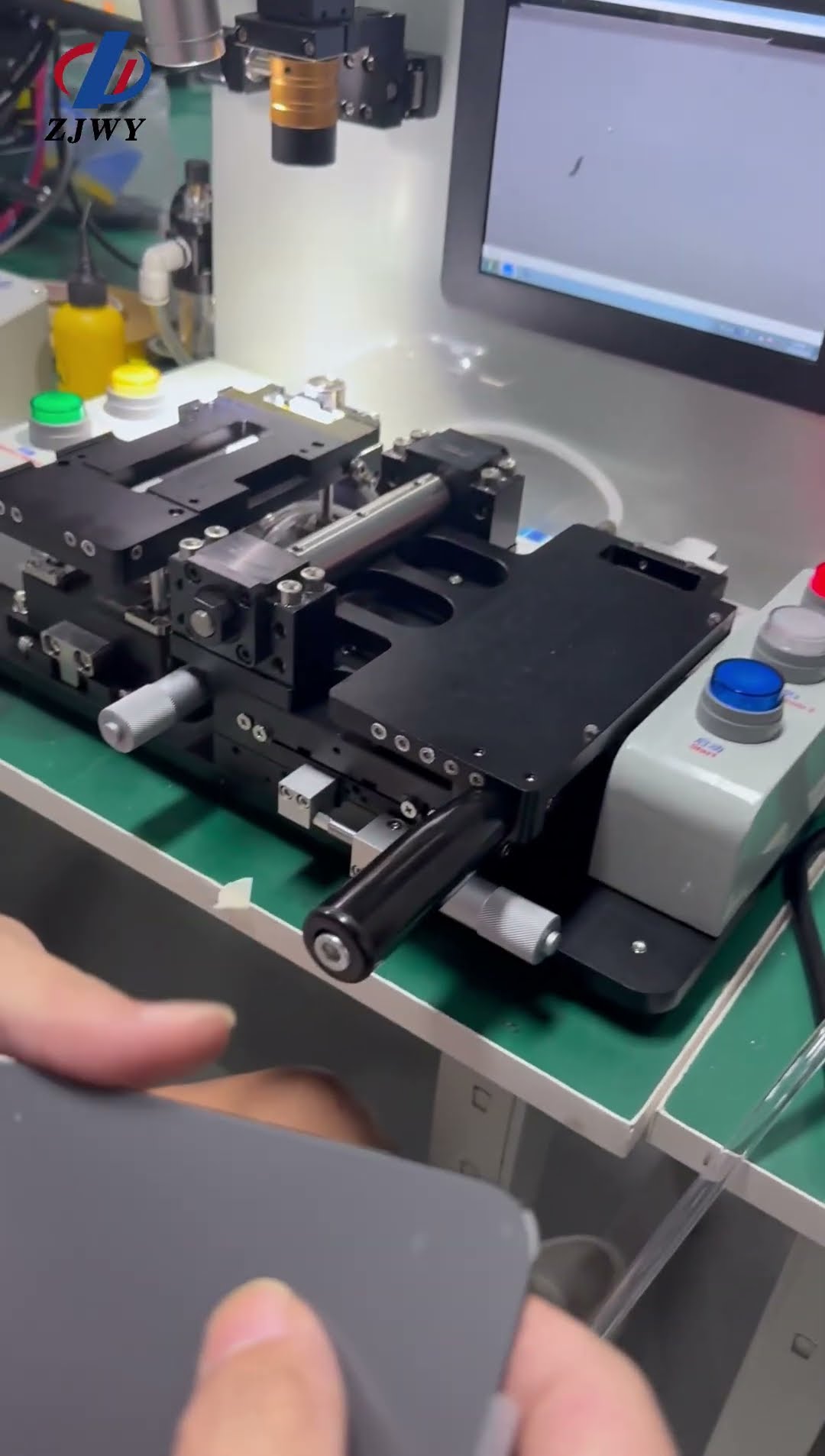

EN-260 alignment and cover glass lamination for iPhone 16 Pro, in real production use.
